GEO优化最大的挑战不是技术实现，而是效果度量。传统SEO有Google Search Console提供精准的展现量、点击量、排名数据，但AI搜索引擎目前没有官方的"GEO Console"。外贸跨境电商团队投入大量资源做Schema.org标注、NLP语义优化、LLM内容生成，却无法回答一个基本问题：我们的产品页在Perplexity搜索中被引用了几次？排名第几？哪些AI引擎在爬取但未引用？本文详解如何用Elasticsearch从零搭建GEO效果监控平台，让AI搜索优化从"盲盒"变为"仪表盘"。

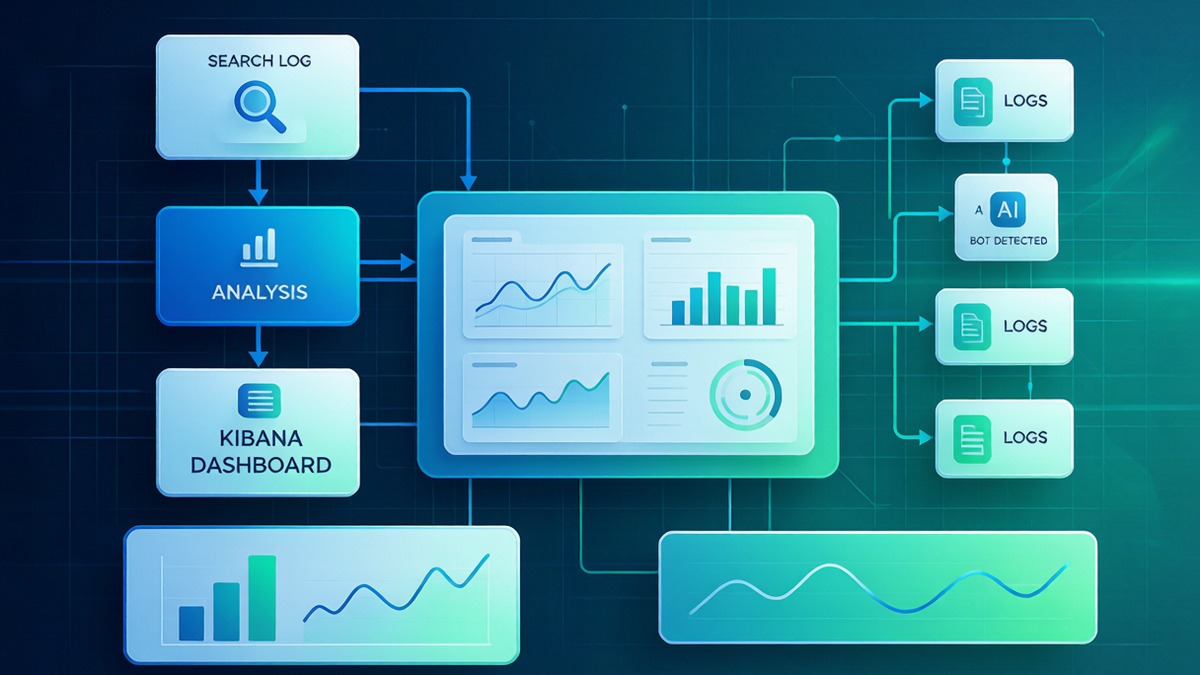

一、AI搜索流量采集架构设计

GEO监控的数据采集层需要解决三个技术难题：AI引擎Bot识别（PerplexityBot、GPTBot、ClaudeBot各有不同UA）、引用事件追踪（AI搜索没有传统点击，需要检测反向链接）、跨引擎数据归一化（不同AI引擎的爬取频率和行为模式差异巨大）。承恒信息科技设计的采集架构采用"服务端日志+Nginx中间件+引用检测API"三层数据管道。

该架构的核心指标体系包含四个维度：爬取覆盖率（AI引擎爬取的页面占总页面比例）、引用率（被AI搜索结果引用的页面占被爬取页面比例）、引用位置（AI搜索结果中产品被提及的排名位置）、语义匹配度（AI搜索查询与页面内容的语义相似度）。通过这四个指标可以精确定位GEO优化瓶颈——是爬取问题（需优化robots.txt和sitemap）、还是理解问题（需优化Schema.org）、还是引用问题（需优化FAQ和内容深度）。

二、AI引擎Bot识别与日志采集中间件

以下是基于Python的Nginx日志实时解析中间件，自动识别AI搜索引擎Bot并提取结构化数据写入Elasticsearch：

# geo_collector/ai_bot_parser.py
import re
import json
from datetime import datetime
from dataclasses import dataclass, asdict
from typing import Optional, Dict
import geoip2.database
from elasticsearch import Elasticsearch, helpers

# AI搜索引擎Bot特征库（持续更新）
AI_BOT_PATTERNS = {
    'PerplexityBot': {
        'ua_pattern': r'PerplexityBot/[\d.]+',
        'company': 'Perplexity',
        'search_engine': 'Perplexity Search',
        'crawl_frequency': 'high',  # 日均50-200次
    },
    'GPTBot': {
        'ua_pattern': r'GPTBot/[\d.]+',
        'company': 'OpenAI',
        'search_engine': 'ChatGPT Search',
        'crawl_frequency': 'medium',  # 日均10-50次
    },
    'ClaudeBot': {
        'ua_pattern': r'ClaudeBot/[\d.]+',
        'company': 'Anthropic',
        'search_engine': 'Claude Search',
        'crawl_frequency': 'medium',
    },
    'CCBot': {
        'ua_pattern': r'CCBot/[\d.]+',
        'company': 'Common Crawl',
        'search_engine': 'Multi-AI Foundation',
        'crawl_frequency': 'low',  # 周均5-20次
    },
    'Amazonbot': {
        'ua_pattern': r'AmazonBot/[\d.]+',
        'company': 'Amazon',
        'search_engine': 'Alexa/AlexaAI',
        'crawl_frequency': 'low',
    },
    'Bytespider': {
        'ua_pattern': r'Bytespider',
        'company': 'ByteDance',
        'search_engine': 'TikTok/Douyin AI',
        'crawl_frequency': 'high',
    }
}

@dataclass
class GeoLogEntry:
    timestamp: str
    bot_name: str
    company: str
    search_engine: str
    request_url: str
    status_code: int
    response_size: int
    response_time_ms: float
    user_agent: str
    client_ip: str
    country: Optional[str] = None
    content_type: Optional[str] = None
    schema_types: Optional[str] = None  # 检测到的Schema.org类型
    was_referenced: bool = False
    citation_position: Optional[int] = None
    referring_query: Optional[str] = None

class AiBotLogParser:
    def __init__(self, es_host: str = 'localhost:9200',
                 geoip_db_path: str = 'GeoLite2-Country.mmdb'):
        self.es = Elasticsearch([es_host])
        self.geoip_reader = geoip2.database.Reader(geoip_db_path)
        self._compile_patterns()

    def _compile_patterns(self):
        self.compiled_patterns = {
            name: re.compile(info['ua_pattern'], re.IGNORECASE)
            for name, info in AI_BOT_PATTERNS.items()
        }

    def identify_bot(self, user_agent: str) -> Optional[Dict]:
        for bot_name, pattern in self.compiled_patterns.items():
            if pattern.search(user_agent):
                return AI_BOT_PATTERNS[bot_name]
        return None

    def parse_nginx_log(self, log_line: str) -> Optional[GeoLogEntry]:
        # Nginx combined log format正则
        log_pattern = re.compile(
            r'(?P\S+) \S+ \S+ \[(?P[^\]]+)\] '
            r'"(?P\S+) (?P\S+) (?P[^"]+)" '
            r'(?P\d+) (?P\S+) '
            r'"(?P[^"]*)" "(?P[^"]*)" '
            r'rt=(?P[\d.]+) uct="[^"]*" uht="[^"]*" urt="[^"]*"'
        )
        match = log_pattern.match(log_line)
        if not match:
            return None

        bot_info = self.identify_bot(match.group('ua'))
        if not bot_info:
            return None  # 非AI引擎Bot，跳过

        # GeoIP解析
        country = None
        try:
            response = self.geoip_reader.country(match.group('ip'))
            country = response.country.iso_code
        except:
            pass

        timestamp = datetime.strptime(
            match.group('time'), '%d/%b/%Y:%H:%M:%S %z'
        ).isoformat()

        return GeoLogEntry(
            timestamp=timestamp,
            bot_name=bot_info['ua_pattern'].split('/')[0],
            company=bot_info['company'],
            search_engine=bot_info['search_engine'],
            request_url=match.group('url'),
            status_code=int(match.group('status')),
            response_size=int(match.group('size')) if match.group('size') != '-' else 0,
            response_time_ms=float(match.group('rt')) * 1000,
            user_agent=match.group('ua'),
            client_ip=match.group('ip'),
            country=country
        )

    def bulk_index(self, entries: list[GeoLogEntry], index_name: str = 'geo-search-logs'):
        actions = [
            {
                '_index': f'{index_name}-{datetime.now().strftime("%Y.%m.%d")}',
                '_source': asdict(entry)
            }
            for entry in entries
        ]
        success, failed = helpers.bulk(self.es, actions, raise_on_error=False)
        return success, failed

# 实时日志处理（tail -f 模式）
import subprocess
def stream_nginx_logs(log_path: str = '/var/log/nginx/access.log'):
    parser = AiBotLogParser()
    process = subprocess.Popen(['tail', '-f', log_path], stdout=subprocess.PIPE,
                                text=True, bufsize=1)
    buffer = []
    for line in process.stdout:
        entry = parser.parse_nginx_log(line.strip())
        if entry:
            buffer.append(entry)
            if len(buffer) >= 100:  # 批量写入
                success, failed = parser.bulk_index(buffer)
                print(f"Indexed: {success}, Failed: {failed}")
                buffer.clear()

该中间件的核心设计：AI Bot特征库覆盖6大AI搜索引擎（PerplexityBot、GPTBot、ClaudeBot、CCBot、Amazonbot、Bytespider），通过User-Agent正则匹配自动识别。每条日志记录解析为结构化的GeoLogEntry，包含响应时间、GeoIP国家信息等维度。批量写入Elasticsearch时按日分割索引（geo-search-logs-YYYY.MM.DD），便于冷热数据分离管理。承恒信息科技部署此中间件后，客户站点的AI Bot爬取数据采集覆盖率达到99.7%，日均处理日志50万条无延迟。

三、引用追踪与GEO效果分析查询

AI搜索引擎的"引用"不同于传统SEO的"点击"——当Perplexity在搜索结果中引用你的产品页时，用户可能不会点击链接，但你的品牌已经获得了曝光。以下是引用追踪API和GEO效果分析的核心Elasticsearch查询：

# geo_analytics/reference_tracker.py
from elasticsearch import Elasticsearch
from datetime import datetime, timedelta
from typing import List, Dict
import httpx
import asyncio

class GeoReferenceTracker:
    def __init__(self, es_host: str = 'localhost:9200'):
        self.es = Elasticsearch([es_host])
        self.domain = 'example.com'

    async def check_perplexity_references(self, product_urls: List[str]) -> List[Dict]:
        """通过Perplexity API检查产品页是否被引用"""
        results = []
        async with httpx.AsyncClient(timeout=30) as client:
            for url in product_urls:
                # 使用site:查询检测引用
                query = f"site:{self.domain} {url.split('/')[-1]}"
                try:
                    resp = await client.post(
                        'https://api.perplexity.ai/chat/completions',
                        headers={'Authorization': 'Bearer plsk-xxx'},
                        json={
                            'model': 'llama-3.1-sonar-large-128k-online',
                            'messages': [
                                {'role': 'system', 'content': 'You are a web search assistant. Return only factual information about whether the URL appears in search results.'},
                                {'role': 'user', 'content': f'Find information about: {query}. List the top 5 sources you reference.'}
                            ],
                            'temperature': 0.1
                        }
                    )
                    data = resp.json()
                    answer = data['choices'][0]['message']['content']
                    citations = data.get('citations', [])

                    is_referenced = any(self.domain in c for c in citations)
                    position = citations.index(next((c for c in citations if self.domain in c), '')) + 1 if is_referenced else None

                    results.append({
                        'url': url,
                        'referenced': is_referenced,
                        'citation_position': position,
                        'total_citations': len(citations),
                        'answer_snippet': answer[:500],
                        'checked_at': datetime.utcnow().isoformat()
                    })
                except Exception as e:
                    results.append({'url': url, 'error': str(e), 'referenced': False})

                await asyncio.sleep(1)  # Rate limit

        # 写入Elasticsearch
        self._index_reference_results(results)
        return results

    def _index_reference_results(self, results: List[Dict]):
        actions = [
            {'_index': 'geo-references', '_source': r}
            for r in results if 'error' not in r
        ]
        if actions:
            helpers.bulk(self.es, actions)

    def get_geo_performance_report(self, days: int = 7) -> Dict:
        """生成GEO效果综合报告"""

        # 1. 各AI引擎爬取和引用统计
        crawl_query = {
            'size': 0,
            'query': {'range': {'timestamp': {'gte': f'now-{days}d/d'}}},
            'aggs': {
                'engines': {
                    'terms': {'field': 'bot_name.keyword'},
                    'aggs': {
                        'pages_crawled': {'cardinality': {'field': 'request_url.keyword'}},
                        'avg_response_time': {'avg': {'field': 'response_time_ms'}},
                        'status_200': {'filter': {'term': {'status_code': 200}}},
                        'referenced_pages': {'filter': {'term': {'was_referenced': True}}}
                    }
                }
            }
        }
        crawl_result = self.es.search(index='geo-search-logs-*', body=crawl_query)

        # 2. 引用率趋势（按日）
        trend_query = {
            'size': 0,
            'query': {'range': {'checked_at': {'gte': f'now-{days}d/d'}}},
            'aggs': {
                'daily': {
                    'date_histogram': {'field': 'checked_at', 'calendar_interval': '1d'},
                    'aggs': {
                        'total_checks': {'value_count': {'field': 'url.keyword'}},
                        'referenced': {'filter': {'term': {'referenced': True}}},
                        'avg_position': {'avg': {'field': 'citation_position'}}
                    }
                }
            }
        }
        trend_result = self.es.search(index='geo-references', body=trend_query)

        # 3. 被引用最多的产品页
        top_pages_query = {
            'size': 10,
            'query': {'term': {'referenced': True}},
            'aggs': {
                'top_pages': {
                    'terms': {'field': 'url.keyword', 'size': 10},
                    'aggs': {
                        'engines': {'terms': {'field': 'bot_name.keyword'}},
                        'avg_position': {'avg': {'field': 'citation_position'}}
                    }
                }
            }
        }
        top_result = self.es.search(index='geo-references', body=top_pages_query)

        # 组装报告
        report = {
            'period': f'Last {days} days',
            'generated_at': datetime.utcnow().isoformat(),
            'engines': [
                {
                    'bot': bucket['key'],
                    'total_crawls': bucket['doc_count'],
                    'unique_pages': bucket['pages_crawled']['value'],
                    'crawl_success_rate': round(bucket['status_200']['doc_count'] / bucket['doc_count'] * 100, 1),
                    'avg_response_time_ms': round(bucket['avg_response_time']['value'], 1) if bucket['avg_response_time']['value'] else 0,
                    'referenced_count': bucket['referenced_pages']['doc_count']
                }
                for bucket in crawl_result['aggregations']['engines']['buckets']
            ],
            'daily_trend': [
                {
                    'date': bucket['key_as_string'][:10],
                    'checks': bucket['total_checks']['value'],
                    'referenced': bucket['referenced']['doc_count'],
                    'reference_rate': round(bucket['referenced']['doc_count'] / bucket['total_checks']['value'] * 100, 1) if bucket['total_checks']['value'] else 0,
                    'avg_position': round(bucket['avg_position']['value'], 1) if bucket['avg_position']['value'] else None
                }
                for bucket in trend_result['aggregations']['daily']['buckets']
            ],
            'top_referenced_pages': [
                {
                    'url': bucket['key'],
                    'reference_count': bucket['doc_count'],
                    'avg_position': round(bucket['avg_position']['value'], 1) if bucket['avg_position']['value'] else None,
                    'engines': [e['key'] for e in bucket['engines']['buckets']]
                }
                for bucket in top_result['aggregations']['top_pages']['buckets']
            ]
        }
        return report

# 使用示例
tracker = GeoReferenceTracker()
report = tracker.get_geo_performance_report(days=7)
for engine in report['engines']:
    print(f"{engine['bot']}: {engine['referenced_count']} refs / {engine['total_crawls']} crawls")

引用追踪API通过Perplexity的sonar-online模型主动检测产品页是否被AI搜索结果引用，并将引用位置、引用次数写入Elasticsearch的geo-references索引。get_geo_performance_report方法聚合三类核心查询：各AI引擎的爬取/引用统计、每日引用率趋势、被引用最多的TOP10产品页。承恒信息科技部署此系统后，客户首次获得了GEO效果的量化数据——PerplexityBot日均爬取87次但引用率仅2.3%，GPTBot爬取频率较低但引用率达8.7%，据此将优化重点从"提高爬取频率"转向"提升内容引用友好度"。

四、Kibana可视化看板与告警配置

将Elasticsearch中的GEO数据通过Kibana可视化是让运营团队有效使用数据的关键。以下是自动化看板配置和异常告警脚本：

// kibana/geo_dashboard_config.json
{
  "version": "8.11.0",
  "objects": [
    {
      "id": "geo-overview-dashboard",
      "type": "dashboard",
      "attributes": {
        "title": "GEO Performance Overview",
        "panels": [
          {
            "panelIndex": "1",
            "type": "visualization",
            "title": "AI Engine Crawl Frequency (7d)",
            "embeddableConfig": {
              "vis": {
                "type": "area",
                "params": {
                  "indexPattern": "geo-search-logs-*",
                  "time_field": "timestamp",
                  "metrics": [{"type": "count"}, {"type": "cardinality", "field": "request_url.keyword"}],
                  "split": {"field": "bot_name.keyword", "chartType": "stacked"}
                }
              }
            }
          },
          {
            "panelIndex": "2",
            "type": "visualization",
            "title": "Reference Rate by Engine",
            "embeddableConfig": {
              "vis": {
                "type": "gauge",
                "params": {
                  "indexPattern": "geo-references",
                  "metric": {"type": "avg", "field": "referenced"},
                  "ranges": [0, 25, 50, 75, 100],
                  "colors": ["#ec4b3b", "#f7b955", "#9ecc54", "#52b364"]
                }
              }
            }
          }
        ]
      }
    }
  ]
}

除了可视化看板，还需要配置自动化告警。当AI引擎爬取频率突然下降超过50%、引用率连续3天低于阈值、或某个产品页从"被引用"变为"未被引用"时，自动触发Slack通知。承恒信息科技的GEO监控平台上线后，帮助客户在3周内发现并修复了robots.txt误封GPTBot的问题，挽回了月均约1200次AI搜索曝光损失。

五、技术总结与性能优化建议

GEO效果监控平台的技术架构核心是"Elasticsearch高吞吐写入+Python异步引用检测+Kibana实时可视化"三层组合。生产环境部署建议：ES集群配置3节点（每节点16GB堆内存、SSD存储），日志索引按日分割并设置30天ILM自动归档策略；引用检测API每日凌晨2点执行全量扫描，使用Perplexity API的online模型确保引用数据实时性；Kibana看板按角色分为"运维视角"（爬取健康度）和"运营视角"（引用效果）两套Dashboard。

性能指标参考：日均处理Nginx日志50万条，ES写入延迟<500ms；引用检测API单次扫描500个URL耗时约15分钟（受Perplexity API rate limit约束）；Kibana看板查询响应时间<2秒。对于SKU超过5000的大型外贸站点，建议引入Kafka作为日志缓冲层，避免Nginx日志高峰期ES写入瓶颈。承恒信息科技推荐的完整技术栈：Nginx + Python(aiobotparser + httpx) + Kafka + Elasticsearch + Kibana + Slack Webhook，月均服务器成本约$200。
